Filament Bundle Magazine

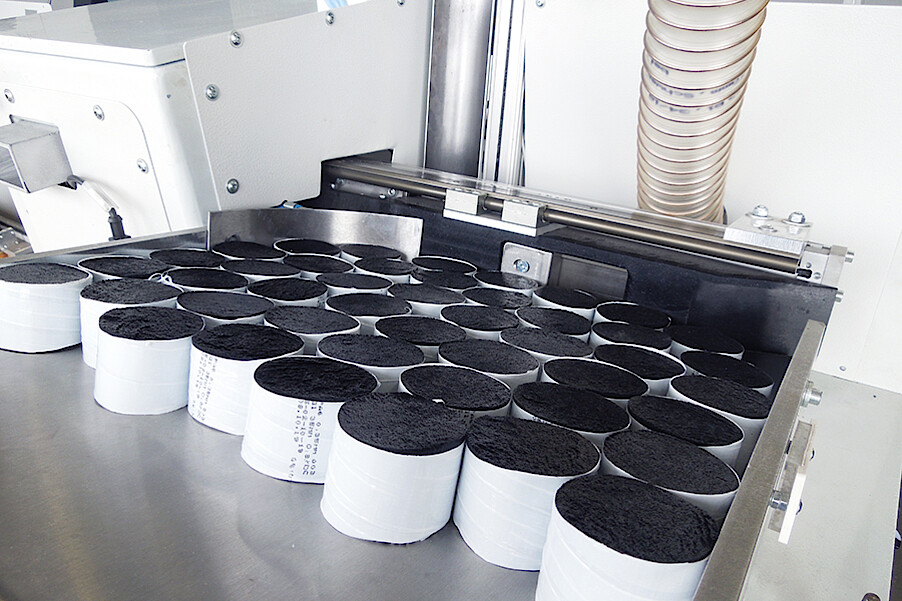

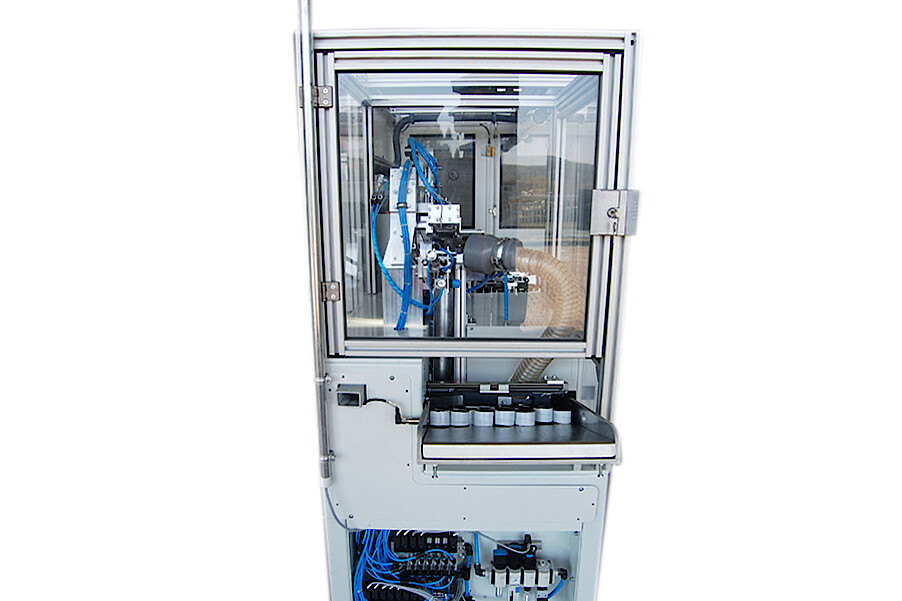

The filament bundles are placed on the slide, which serves as a magazine. A pusher removes the bundle and passes it upwards, where it is waiting to be retrieved by the tufting machine.

Foil Remover

As soon as the signal comes from the filament box of the tufting machine, the foil is separated from the filament bundle and transported away in a suction hose.

Bundle Feeder

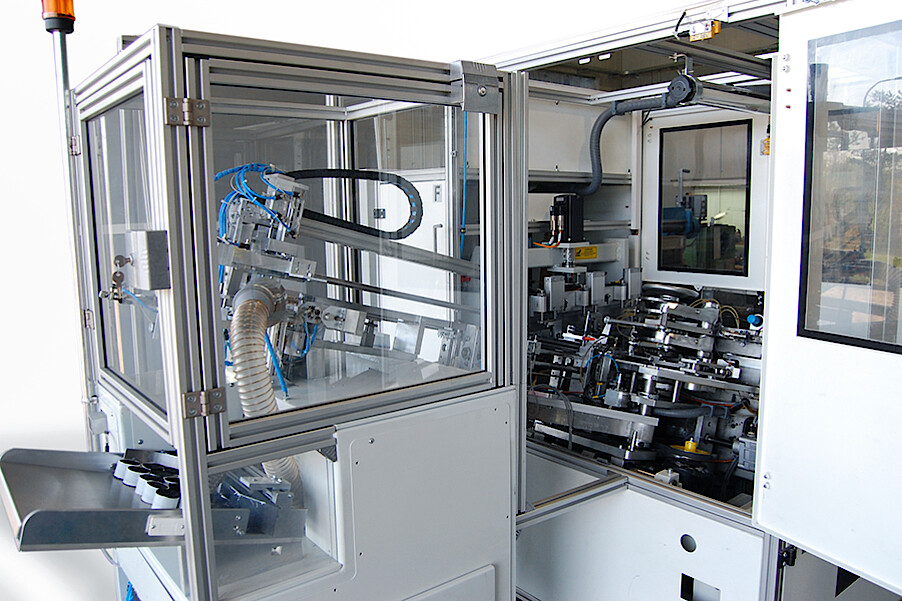

The bundle is transferred to the feeder using a gripper system. From there, the filaments get pre-portioned and loss-free into the filament box of the tufting machine. Depending on how many channels are installed here, the WOMAtec filament loader is also available for use with multiple colors.

Control System

The filament loading system works with an independent control, intervention in the control and software of the tufting machine is not necessary. A signal is only picked up at a fixed point in the filament box, via which the filament loader is activated. However, the emergency and start / stop function of both machines are linked so that collisions are avoided and safety is always guaranteed.

Machine Frame

Everything on board - the solid welded steel frame hides electric and pneumatic systems. Powder-coated cover panels protect the interior from dirt and ensure a clean look. Enclosures at safety-relevant points are secured with limit switches.

Automation Solutions

You want to optimize or automate your production process? WOMAtec develops and builds machines for special applications. From planning through CAD design to production, we are the right partner for you.

At the planning of individual solutions we try for:

  • easy operation and maintenance
  • solid construction
  • reliability and longevity
  • high proportion of standard parts and thus
  • easy access to wear and spare parts



We accompany you from the first idea to the production stage.

Benefit from our experience with machines of all kinds in the fields of wood processing and brush production.

  1. Design. You want to make a special product, but there is no machine on the market for it? Together we collect ideas, make suggestions for solutions and designs.
  2. Construction. If the idea has grown in your mind, it has to be on paper - or better, in CAD. Our design department translates the designs into production-ready drawings.
  3. Manufacture. Most of the production parts are produced directly in our fully equipped workshop. Special components and standard parts come from partners in the region. With trial runs under production conditions, we ensure that the machine will fulfill its purpose permanently and reliably after delivery.

Request regarding Automation Solutions (filament loader):

Request

About us

Our company

WOMAtec Maschinenbau GmbH was created in 2015 from the used machine trade WOMA. Company founder Daniel Koehler has been trading since 2008 with used machines for woodworking and the brush industry. At first only machines are bought and sold again. Focused on the international market right from the start, the company is rapidly becoming an established service provider in the field of machine overhaul, repair and spare parts. It was only a small step to new machine construction.

Fascinated by the solid functionality of old machines, Daniel Koehler picks up proven technologies at WOMAtec Maschinenbau GmbH and develops them further for modern production operations...

About us

References

Worldwide in Use.



WOMAtec machines come in use not only in Germany and Europe. Thanks to their ease of use, a high proportion of standard components and the largely avoidance of fault-prone electronic components, WOMAtec systems meanwhile operate in countries such as India, Indonesia, Canada, South America and the USA.

References

References White Box

"You should be proud...

...of the machines you are building. This machine is world class. No one in the world makes a better machine. We have been in the brush industry for 40 years, and have never seen a machine as nice as this."

Brian M. Chaltry & Bob Duffrin, CMB Mfg LLC, Michigan / USA
- WOMAtec Strip Brush Machine SSB 1.0 -
