Table

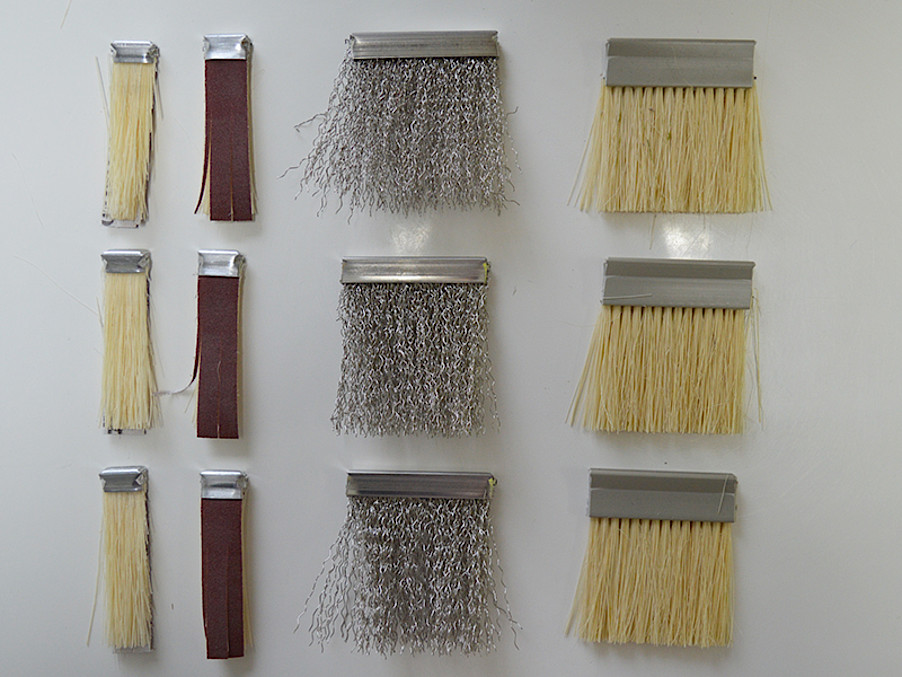

In the standard version, strip brushes, tufted or metal back, also other profiles up to 2 meters in length can be inserted.

Feed

Motorized rollers grip the profile and push it to the exact cutting position.

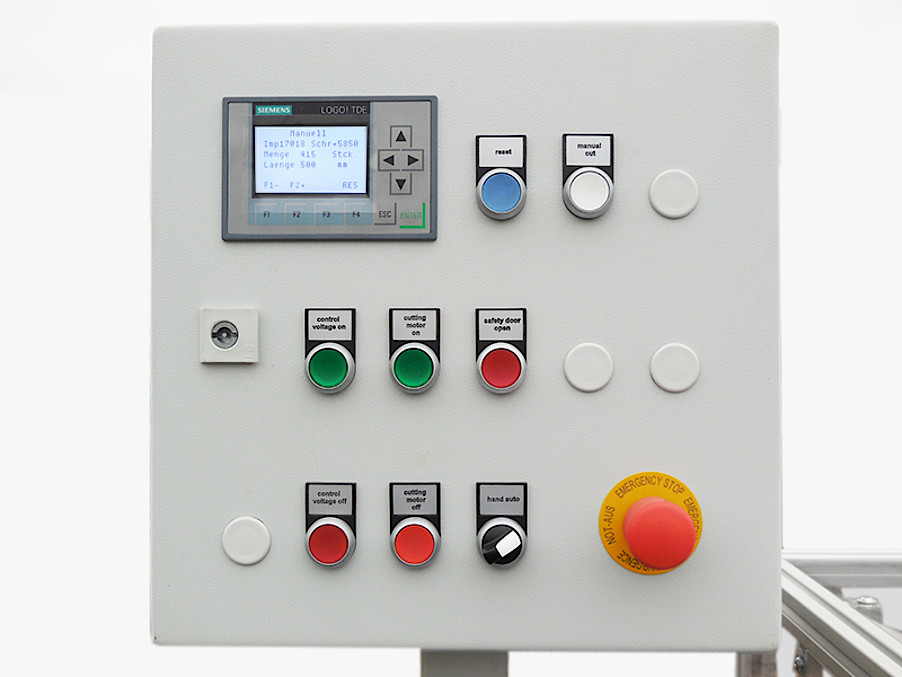

Controls

The cutting length is entered via a display. The feed rate can be controlled via a potentiometer. The electronic length measuring system ensures high cutting accuracy with a maximum tolerance of +/- 1 mm.

Machine Frame

Everything on board - the solid welded steel frame hides drives and control cabinets. Powder-coated cover panels protect the motor from dirt and ensure a clean look. The enclosure at the cutter is secured with limit switches.

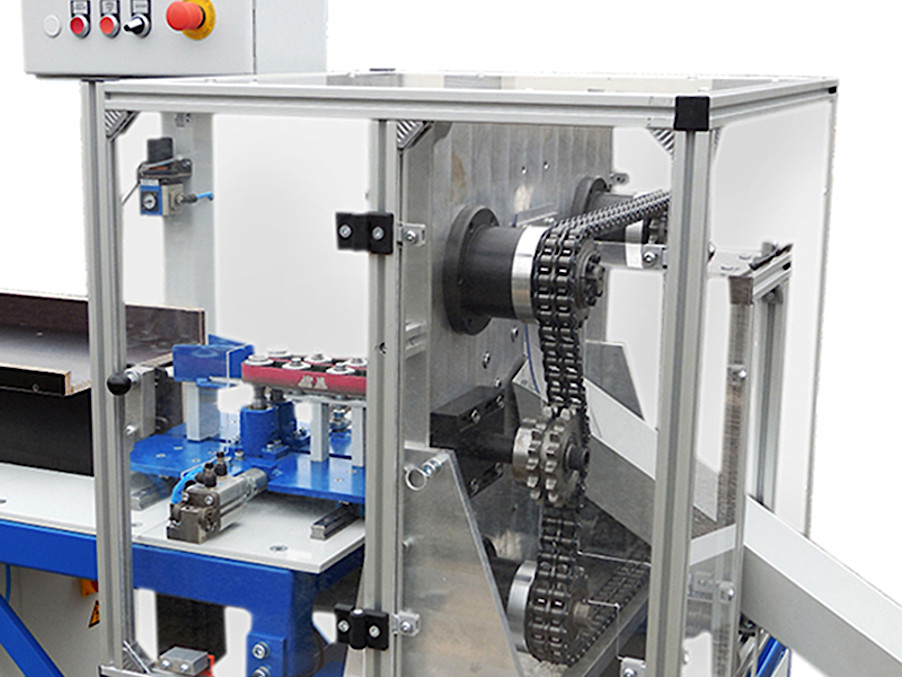

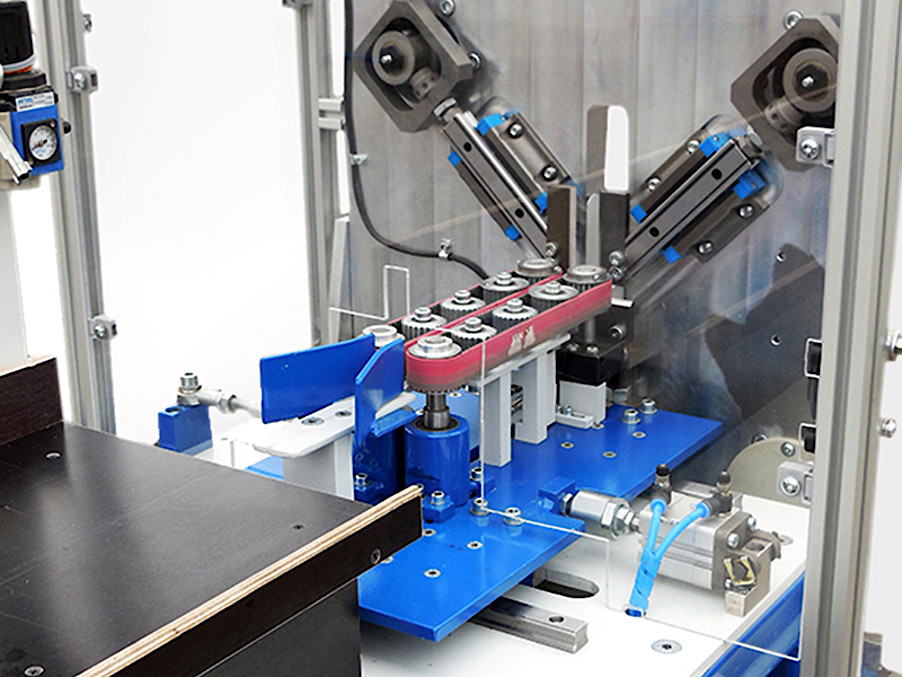

Cutter

This 3-fold cutter defeats every profile size and every material, regardless of whether it is abrasive, stainless steel, wire or plastic.

Its strong drive transmits the power to two movable knives, which face a fixed one. Thanks to this technology, the brush end is perfectly closed without sharp corners and edges. Optionally, a gripper pulls out the finished brush and throws it into a channel. And so that the brushes, no matter how long, are also straight, a compact adjustable straightening station is installed in front of the cutter. The geometry of blades could be adapted to individual profile shapes.

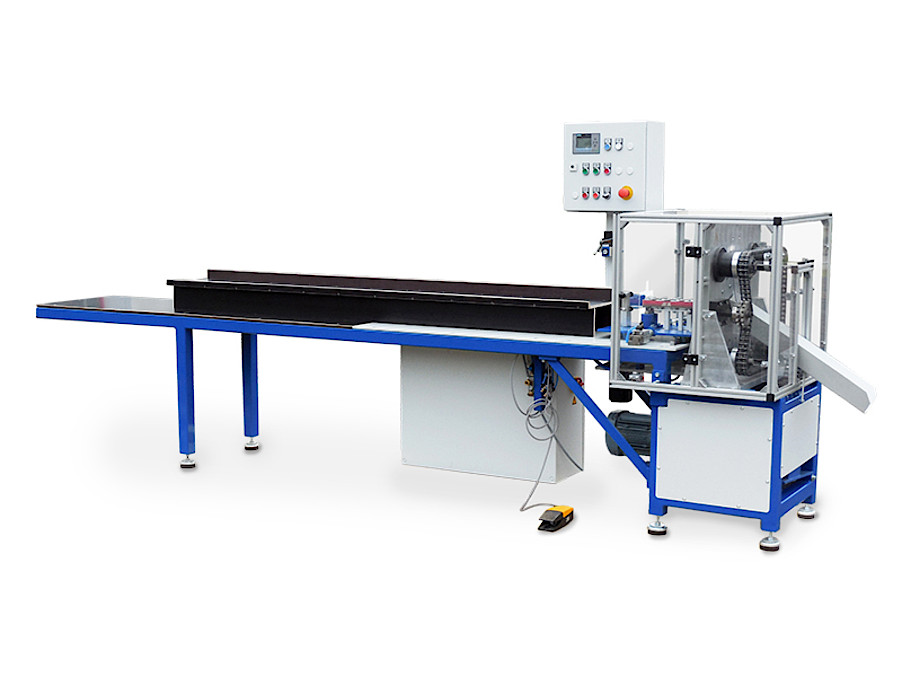

Automatic Cutter

  • easy operation and maintenance
  • solid construction
  • reliable and durable
  • universally applicable
  • high productivity
  1. Speed. Variable up to 100 cuts per minute.
  2. Profile sizes. From 3 to 15 mm. Others on request.
  3. Cut length. From 30 mm up to endless.

Request regarding Automatic Cutter:

Request

About us

Our company

WOMAtec Maschinenbau GmbH was created in 2015 from the used machine trade WOMA. Company founder Daniel Koehler has been trading since 2008 with used machines for woodworking and the brush industry. At first only machines are bought and sold again. Focused on the international market right from the start, the company is rapidly becoming an established service provider in the field of machine overhaul, repair and spare parts. It was only a small step to new machine construction.

Fascinated by the solid functionality of old machines, Daniel Koehler picks up proven technologies at WOMAtec Maschinenbau GmbH and develops them further for modern production operations...

About us

References

Worldwide in Use.



WOMAtec machines come in use not only in Germany and Europe. Thanks to their ease of use, a high proportion of standard components and the largely avoidance of fault-prone electronic components, WOMAtec systems meanwhile operate in countries such as India, Indonesia, Canada, South America and the USA.

References

References White Box

"You should be proud...

...of the machines you are building. This machine is world class. No one in the world makes a better machine. We have been in the brush industry for 40 years, and have never seen a machine as nice as this."

Brian M. Chaltry & Bob Duffrin, CMB Mfg LLC, Michigan / USA
- WOMAtec Strip Brush Machine SSB 1.0 -
