Channel

Support for filament hanks up to 1.20 meter in length, longer on request. By spring tension, the strand is automatically pushed to the knife. When the limit switch is reached, the machine switches off.

Optionally the machine can be equipped with a stacking magazine and automatic hank feed.

Downholder

Thanks to the mechanic hold-down clamp before the passage to the knife, the filament hank keeps its round shape and the cuts become clean and straight.

Knife

The motorized knife is made of special hardened steel and suitable for various materials. It can be grinded and readjustet many times.

Stop

The length stop can be adjusted quickly and easily. Via spring tension it stays in position even under strain, which ensures a precise cutting length. After the cut it drives back and releases the finished cut for ejection via a flap.

Drive & Controls

Thanks to the powerful motor drive, the knife cuts even the strongest materials such as PVC, Tampico or Abrasive. The machine can be operated in manual or automatic mode with 50 cuts per minute. Of course this machine has safety switches and emergency stop.

Machine Frame

Everything on board - the solid welded steel frame hides drive and control cabinet. Powder-coated cover panels protect the interior from dirt and ensure a clean look. Enclosures at safety-relevant points are secured with limit switches.

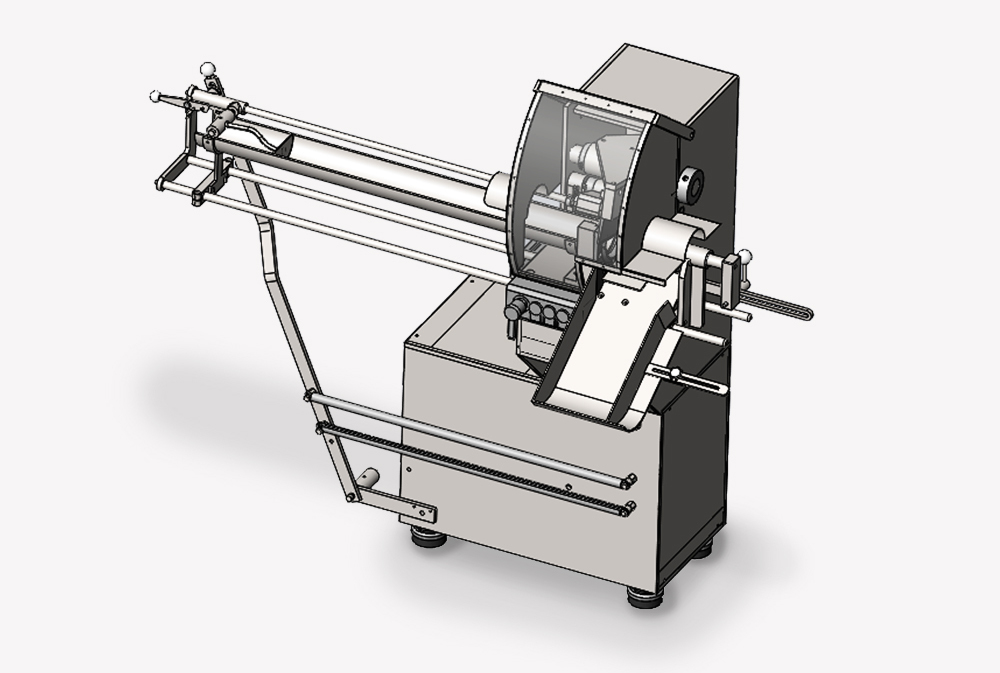

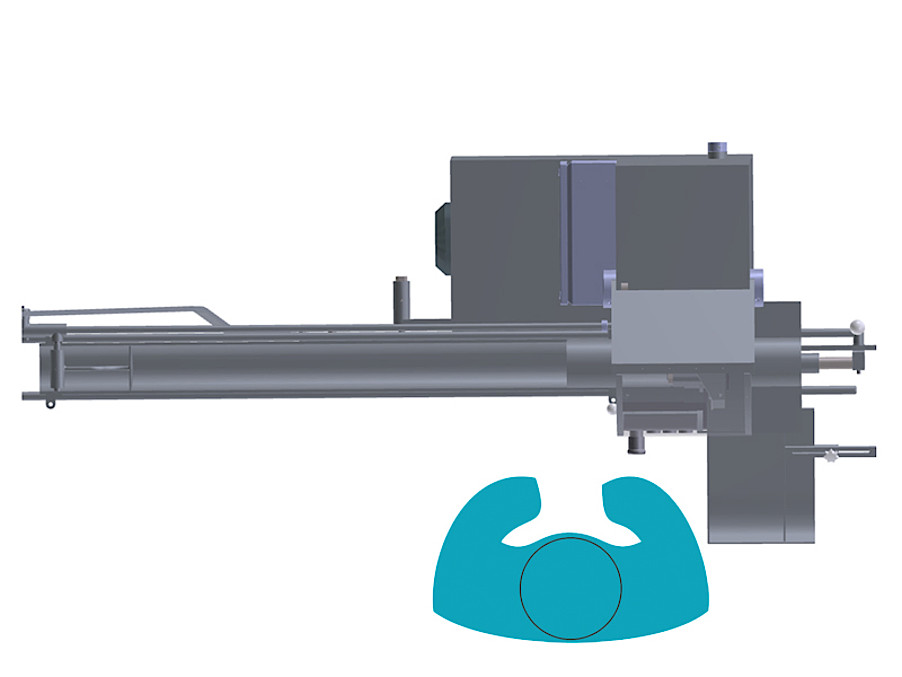

Automatic Hank Cutter

  • easy and safe operation
  • solid construction
  • WITHOUT pneumatic
  • reliable and durable
  • low wear

PDF file

  1. Hank length. Maximum 1,20 m. Longer on request.
  2. Hank Ø. Maximum 80 mm. Larger on request.
  3. Cut length. Maximum 200 mm. Longer on request.

Request regarding Automatic Hank Cutter:

Request
