Channel

Support for filament hanks up to 1.20 meter in length, longer on request

Downholder

Thanks to the pneumatic hold-down device before the passage to the knife, the filament hank keeps its round shape and the cuts become clean and straight.

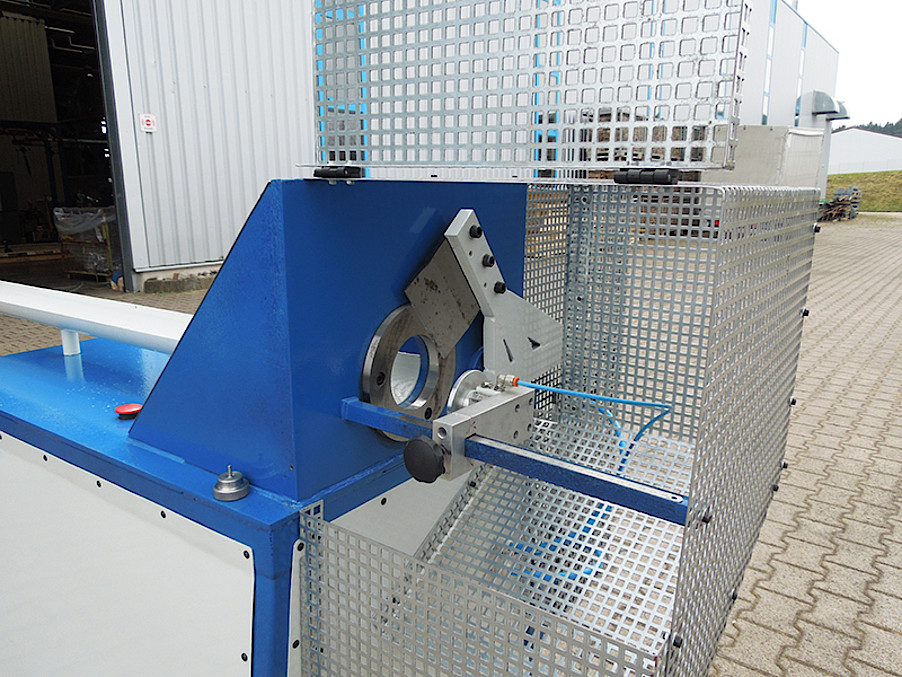

Knife

The knife made of hardened special steel is moved pneumatically by pushing a button. It is durable and can be grinded and readjusted many times.

Stop

The length stop can be adjusted quickly and easily. Pneumatically supported it stays in position even under strain, which ensures a precise cutting length. After the cut it drives back and releases the finished cut for ejection via a flap.

Machine Frame

The welded steel frame ensures stability. Powder-coated cover panels protect the interior from dirt. Covers are mounted at safety-relevant points.

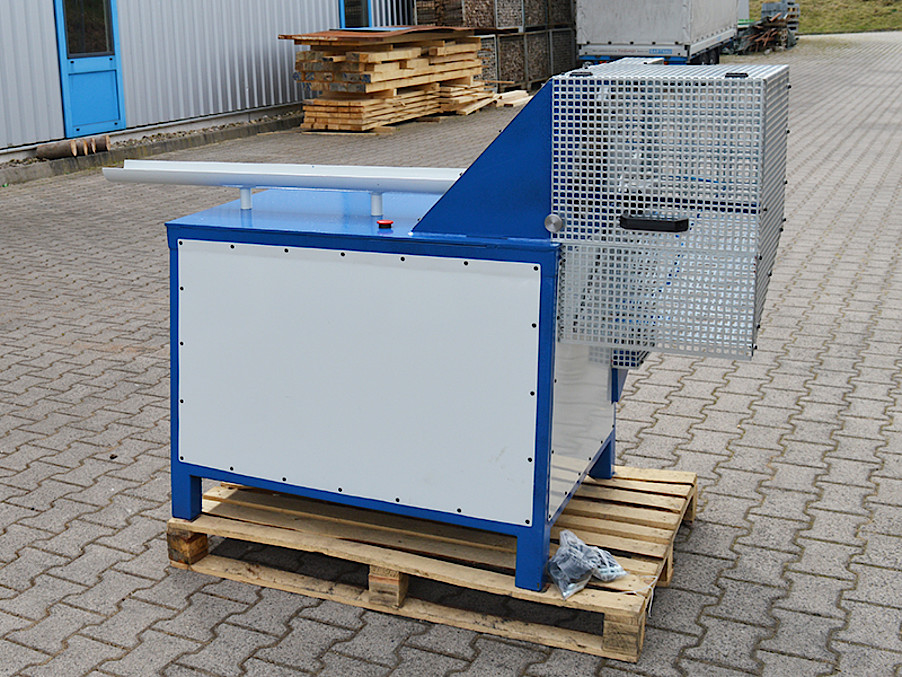

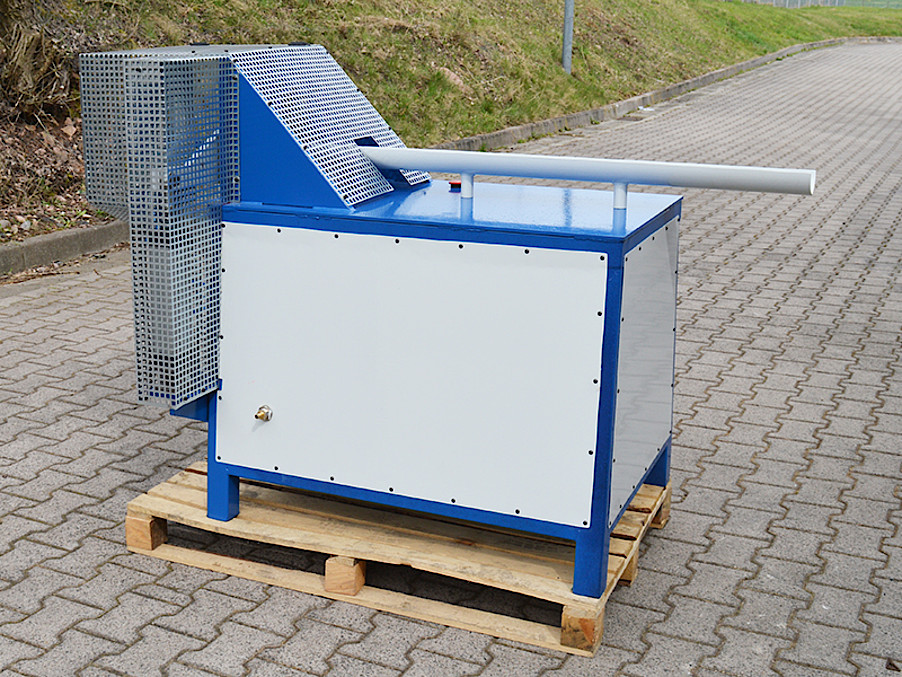

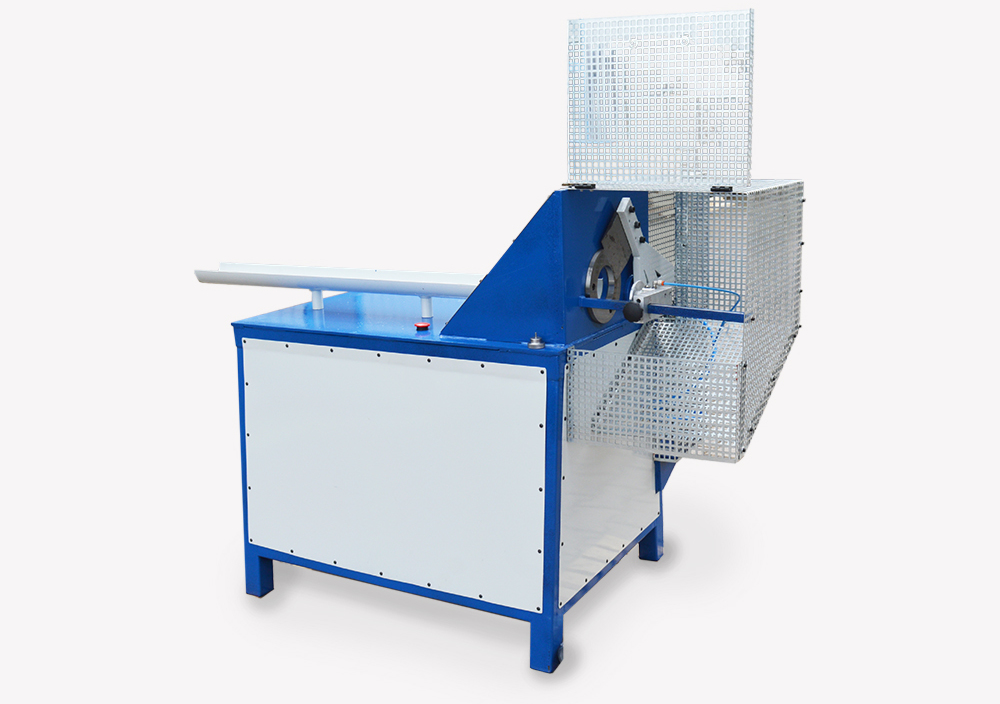

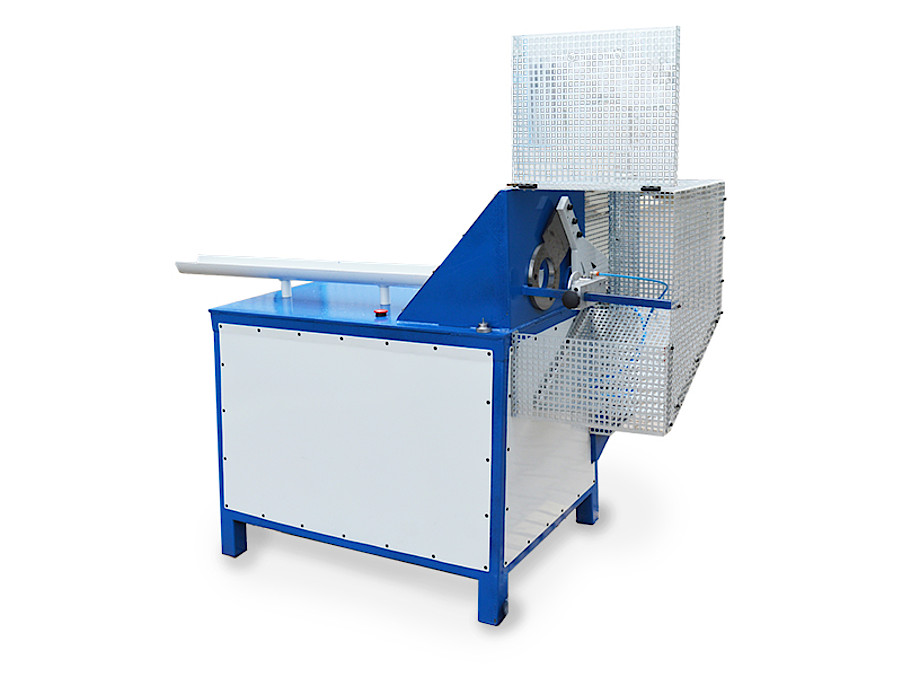

Pneumatic Hank Cutter

  • easy and safe operation
  • solid construction
  • reliable and durable
  • low wear

PDF file

  1. Hank length. Maximum 1,20 m. Longer on request.
  2. Hank Ø. Maximum 80 mm. Larger on request.
  3. Cut length. Maximum 300 mm (ruler at stop). Longer on request.

Request regarding Pneumatic Hank Cutter:

Request
